How to visualise your team’s data (part three)

In parts one and two of this post we created a spreadsheet to capture your team’s data and a Cumulative Flow Diagram based on the data. I highly recommend you read those before this.

Visualising Throughput

You can measure your team’s Throughput as the number of work items completed in a given time period. Typically, this would be a count of the work items you’ve completed each week, but you could conceivably measure it in days, sprints or whatever works best for you. You might also want to break down work items into specific types (e.g. user stories versus defects).

In this example, we’ll be tracking the total number of work items completed in a week, via a chart. As the information builds over time, you can use it to discuss and understand the Throughput trend of your team. For example, the chart below shows the trend decreasing – this could prompt a discussion in a retrospective, to understand what might be causing it:

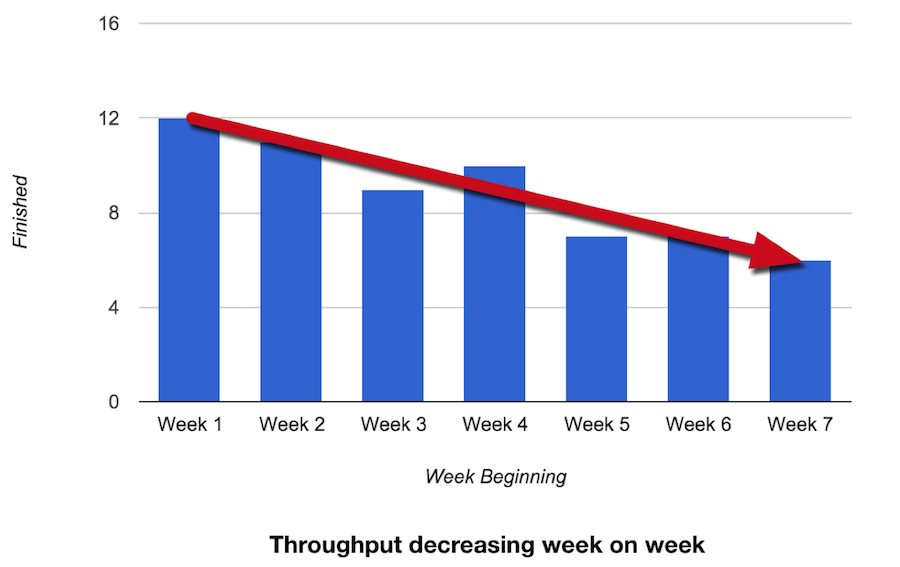

01_decreasing_throughput

Or, you might want to discuss the causes of an outlier in your normally-consistent Throughput trend, like this:

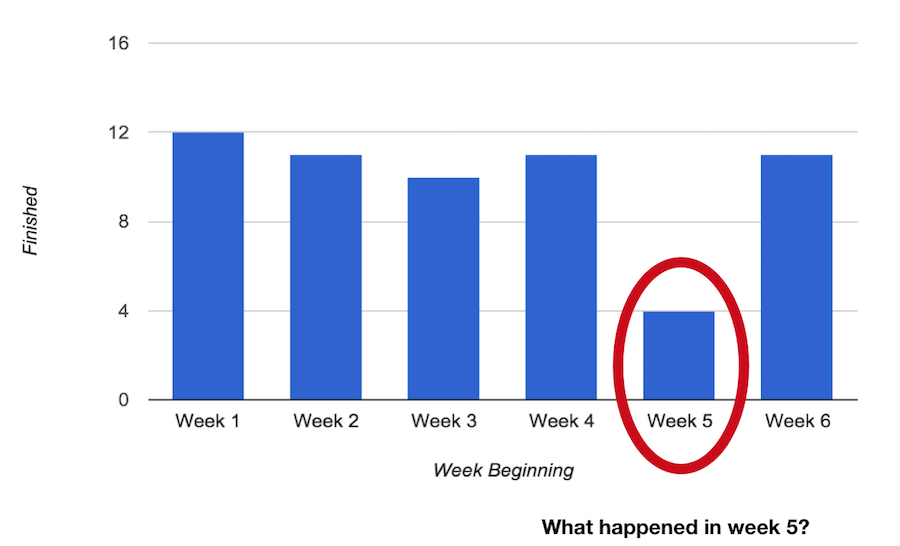

02_outlier



You can also use this data to make a very rough prediction on the number of weeks remaining to complete a given set of work items (see the footnote in my earlier post – Why is the work taking so long? – for a little more on this).

This time, we’ll create two visualisations of our data: our Throughput and the Net Flow. The latter is an interesting chart (originally proposed by Troy Magennis) that, at a glance, shows whether you are starting or finishing more work over time. Good to know!

03_NetFlow_example

Let’s get started.

1) Add a new sheet called ‘Throughput’

2) Add the following header columns (starting in cell A1):

A B C
Week Beginning Started Finished

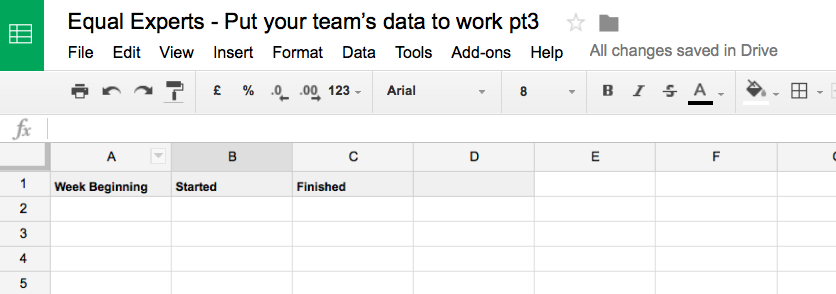

Screen Shot 2016-02-04 at 14.16.42



3) Next, set up an auto-incrementing set of dates in the first column:

  • We’ll pick the Monday before the first work item started as our start date in A2;
  • Set A3 as =WORKDAY(A2,5) and fill downwards to apply the formula as far as you like.

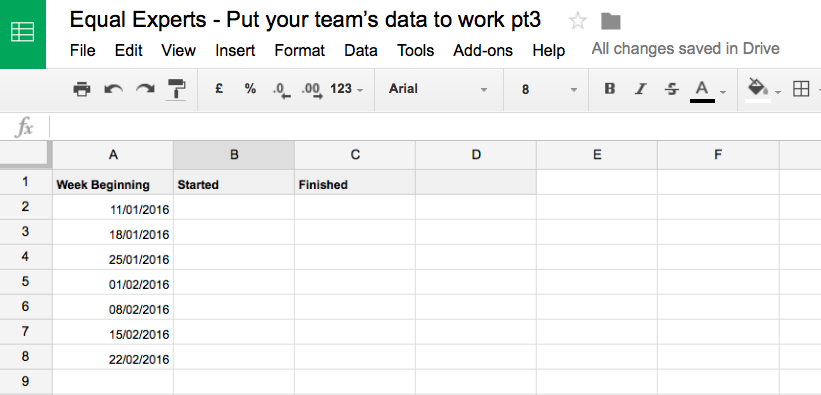

Screen Shot 2016-02-04 at 14.19.30



4) Now, add formulas to calculate the data that will to populate the chart:

A B C
<date> =COUNTIF(Data!J:J,$A2)
  • Set B2 as =COUNTIF(Data!J:J,$A2) and copy/fill this formula to the next cell.
  • Copy/fill down until you get to the most recent Monday (or 22/02/2016 if you’re playing with our example data set – make a copy from this Google sheet, or download the Excel version).

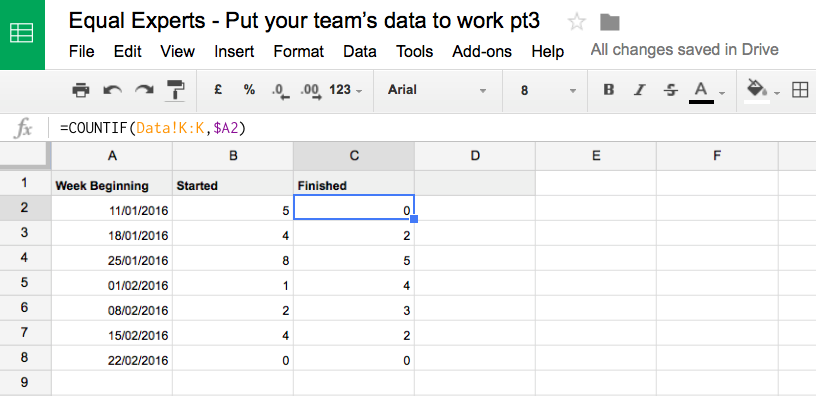

Screen Shot 2016-02-04 at 14.21.23

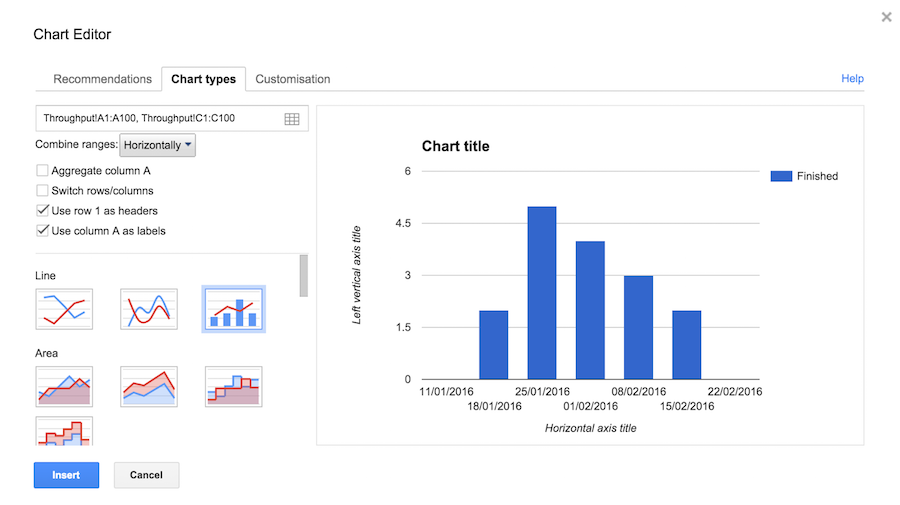

5) Now we can make our first chart: just select columns A & C in the sheet and insert a Column chart (Insert > Chart in Google Docs). You might want to customise the title and axis names as well.

04_Column_Chart

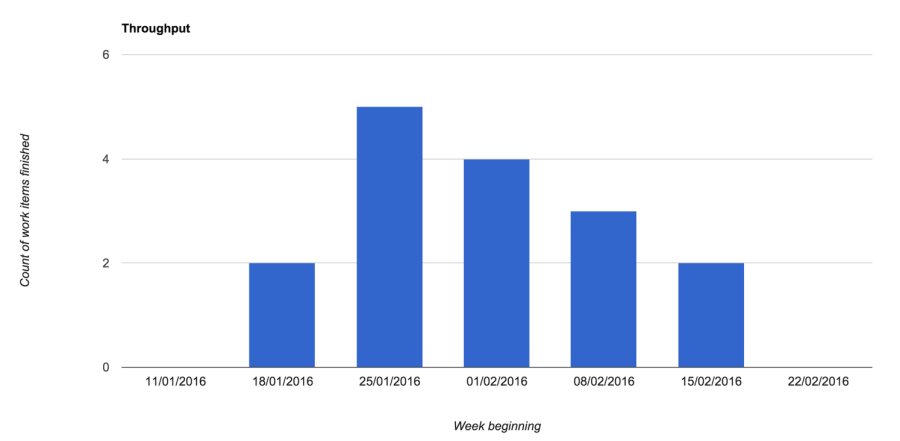

05_Column_Chart



Let’s make the net flow chart

1) Add an extra header column next to ‘Finished’ called ‘Delta’.

2) In D2, add the formula =C2-B2 and fill/copy down as needed.

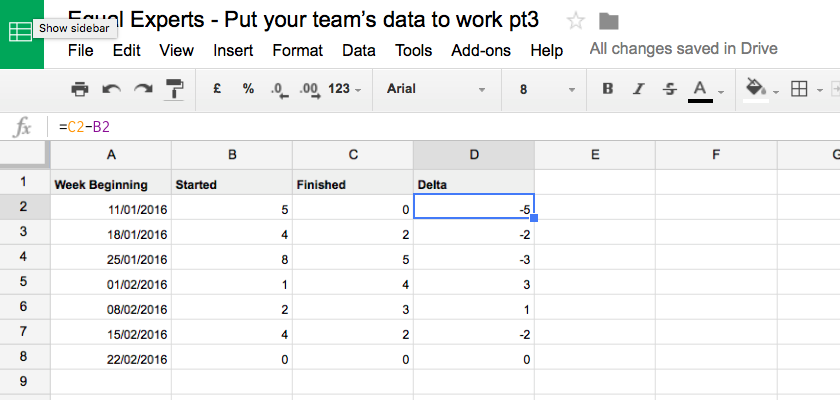

Screen Shot 2016-02-04 at 14.22.25

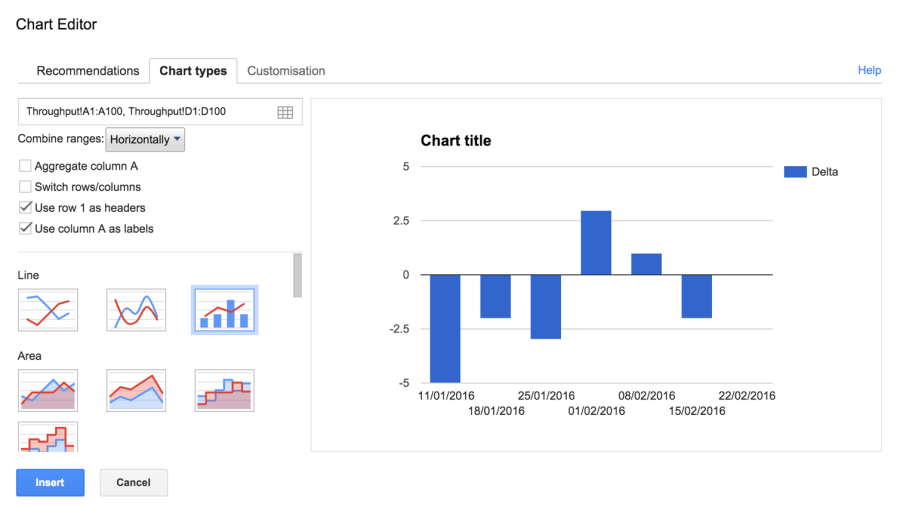

3) Select columns A and D in this sheet and insert a Column chart (Insert > Chart in Google Docs). Again, customise the title and axis names as needed.

06_netflow



You now have your Net Flow chart!

In the fourth and final part of this series, we’ll be adding support to visualise Cycle Time – and the chart will be a powerful, useful tool for visualising your team’s data.
